Arduino MKR Therm Shield ASX00012

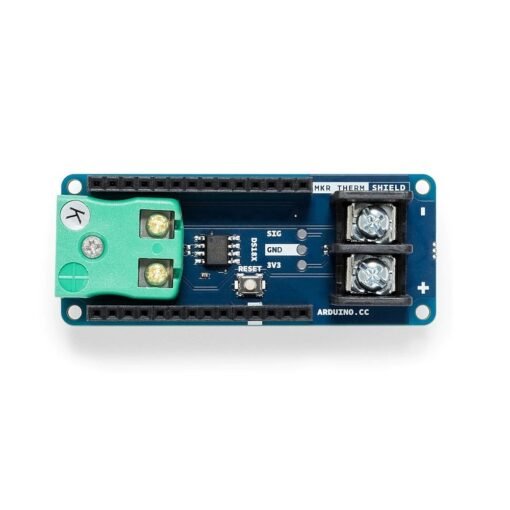

The MKR THERM Shield allows a board of the MKR family to acquire temperatures from a thermocouple of type K and a DS18Bxx digital one-wire sensor. The Thermocouple is a kind of temperature sensor that offers high accuracy and a wide range of measured temperatures. Its analog nature requires specific interfacing and this shield relies on the MAX31855 thermocouple digital interface.The two connectors of the MKR THERM Shield allow the usage of Type K thermocouples with or without a plug attached to the metal wires.The MKR THERM Shield has its own library to read the temperature measured by the thermocouple. You may find further details and a usage example in our Getting Started page.Compatible with:MKR ZeroMKR 1000 WiFiMKR WiFi 1010MKR FOX 1200MKR WAN 1300MKR WAN 1310MKR GSM 1400MKR NB 1500MKR Vidor 4000FeaturesCONNECTORS:K TYPEDALLAS DS18S20 (to solder)Screw terminal blockINPUT VOLTAGE 3.3VOPERATING VOLTAGE 3.3VOPERATING TEMPERATURE -200°C 700°CCOMMUNICATION SPI/1WireIC MAX31855LENGTH 61 mmWIDTH 25 mmWEIGHT 32 gr.
